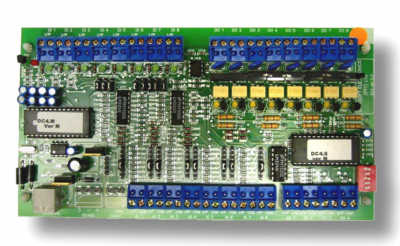

DC6 AHU Controller              Technical Data Download PDF

                                                                Setup GuideDownload PDF








 The DC6 is a full featured AHU controller. The DC6 will operate "stand alone" or as an integral part of a building management system (BMS).

The control parameters, such as temperature setpoint are stored in non volatile memory (EEPROM) to prevent them from being lost when the power is removed. All connections to the DC6 are by means of plug-in screw terminal connectors which provides for quick, convenient installation, commissioning and maintenance.





s s s s
  Features   s

PurpleSwift Bullet LCD Display with keypad for setpoint adjustment etc
PurpleSwift Bullet 2 Temperature control loops
PurpleSwift Bullet Humidity control
PurpleSwift Bullet Differential pressure control
PurpleSwift Bullet Fresh air damper economy control
PurpleSwift Bullet Stand alone or BMS operation (Siemens Building Technologies System 600 compatible)
PurpleSwift Bullet Load shedding function for maximum demand limiting
PurpleSwift Bullet Time of day function for 7 day time switch scheduling
PurpleSwift Bullet 8 Digital outputs, 4 analog outputs, 8 analog inputs and 8 digital inputs
PurpleSwift Bullet 2 Anti-recycle timers and auto lead / lag compressor control
  s
      s

Typical Installation
